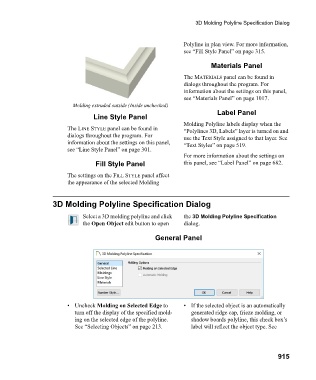

Page 915 - Chief Architect Reference Manual

3D Molding Polyline Specification Dialog

Polyline in plan view. For more information,
see “Fill Style Panel” on page 315.

Materials Panel

The MATERIALS panel can be found in
dialogs throughout the program. For
information about the settings on this panel,
see “Materials Panel” on page 1017.
Molding extruded outside (Inside unchecked)
Label Panel
Line Style Panel
Molding Polyline labels display when the
The LINE STYLE panel can be found in “Polylines 3D, Labels” layer is turned on and
dialogs throughout the program. For use the Text Style assigned to that layer. See
information about the settings on this panel, “Text Styles” on page 519.
see “Line Style Panel” on page 301.
For more information about the settings on
Fill Style Panel this panel, see “Label Panel” on page 682.

The settings on the FILL STYLE panel affect
the appearance of the selected Molding

3D Molding Polyline Specification Dialog
Select a 3D molding polyline and click the 3D Molding Polyline Specification
the Open Object edit button to open dialog.

General Panel

• Uncheck Molding on Selected Edge to • If the selected object is an automatically
turn off the display of the specified mold- generated ridge cap, frieze molding, or
ing on the selected edge of the polyline. shadow boards polyline, this check box’s
See “Selecting Objects” on page 213. label will reflect the object type. See
