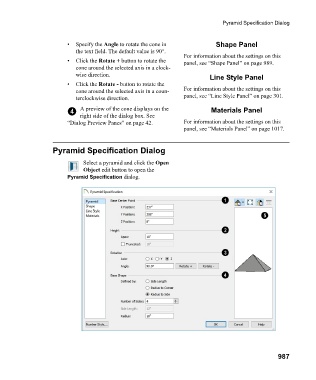

Page 987 - Chief Architect Reference Manual

Pyramid Specification Dialog

• Specify the Angle to rotate the cone in Shape Panel
the text field. The default value is 90°.
For information about the settings on this
• Click the Rotate + button to rotate the panel, see “Shape Panel” on page 989.
cone around the selected axis in a clock-
wise direction. Line Style Panel
• Click the Rotate - button to rotate the
cone around the selected axis in a coun- For information about the settings on this
terclockwise direction. panel, see “Line Style Panel” on page 301.

4 A preview of the cone displays on the Materials Panel
right side of the dialog box. See
“Dialog Preview Panes” on page 42. For information about the settings on this
panel, see “Materials Panel” on page 1017.

Pyramid Specification Dialog

Select a pyramid and click the Open
Object edit button to open the
Pyramid Specification dialog.

987
