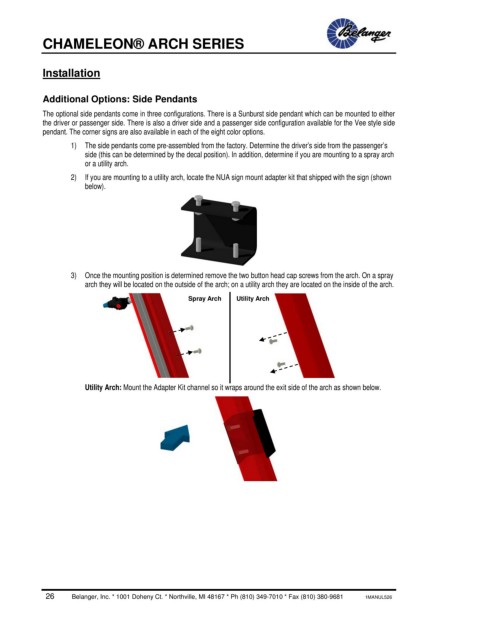

CHAMELEON® ARCH SERIES

Installation

Additional Options: Side Pendants
The optional side pendants come in three configurations. There is a Sunburst side pendant which can be mounted to either
the driver or passenger side. There is also a driver side and a passenger side configuration available for the Vee style side
pendant. The corner signs are also available in each of the eight color options.
1) The side pendants come pre-assembled from the factory. Determine the driver’s side from the passenger’s
side (this can be determined by the decal position). In addition, determine if you are mounting to a spray arch
or a utility arch.

2) If you are mounting to a utility arch, locate the NUA sign mount adapter kit that shipped with the sign (shown
below).

3) Once the mounting position is determined remove the two button head cap screws from the arch. On a spray
arch they will be located on the outside of the arch; on a utility arch they are located on the inside of the arch.
Spray Arch Utility Arch

Utility Arch: Mount the Adapter Kit channel so it wraps around the exit side of the arch as shown below.
