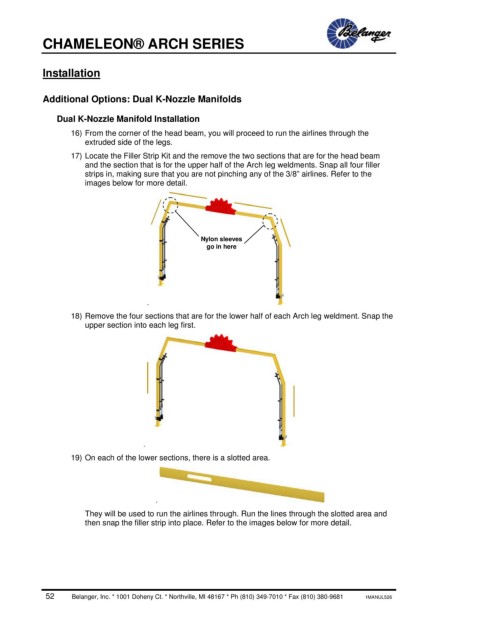

CHAMELEON® ARCH SERIES


            Installation


            Additional Options: Dual K-Nozzle Manifolds

               Dual K-Nozzle Manifold Installation
                   16) From the corner of the head beam, you will proceed to run the airlines through the
                       extruded side of the legs.
                   17) Locate the Filler Strip Kit and the remove the two sections that are for the head beam
                       and the section that is for the upper half of the Arch leg weldments. Snap all four filler
                       strips in, making sure that you are not pinching any of the 3/8” airlines. Refer to the
                       images below for more detail.








                                                    Nylon sleeves
                                                      go in here







                                      .
                   18) Remove the four sections that are for the lower half of each Arch leg weldment. Snap the
                       upper section into each leg first.

















                                      .
                   19) On each of the lower sections, there is a slotted area.





                                         .
                       They will be used to run the airlines through. Run the lines through the slotted area and
                       then snap the filler strip into place. Refer to the images below for more detail.
