Stainless Steel Mounted UNIARCH
Installation

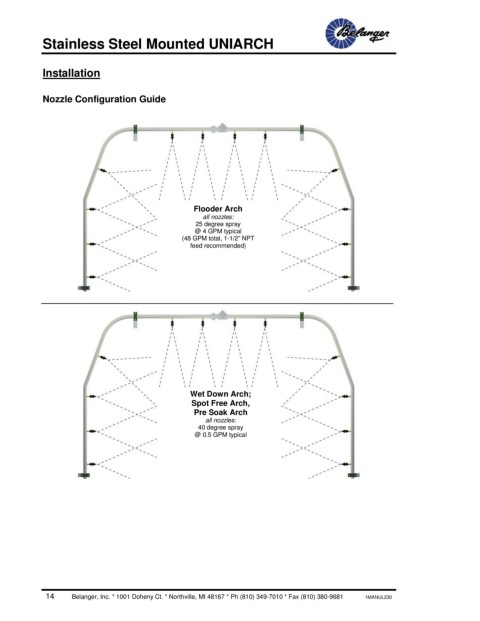

Nozzle Configuration Guide
Flooder Arch
all nozzles:
25 degree spray
@ 4 GPM typical
(48 GPM total, 1-1/2” NPT
feed recommended)
Wet Down Arch;
Spot Free Arch,
Pre Soak Arch
all nozzles:
40 degree spray
@ 0.5 GPM typical
