Stainless Steel Mounted UNIARCH
Installation

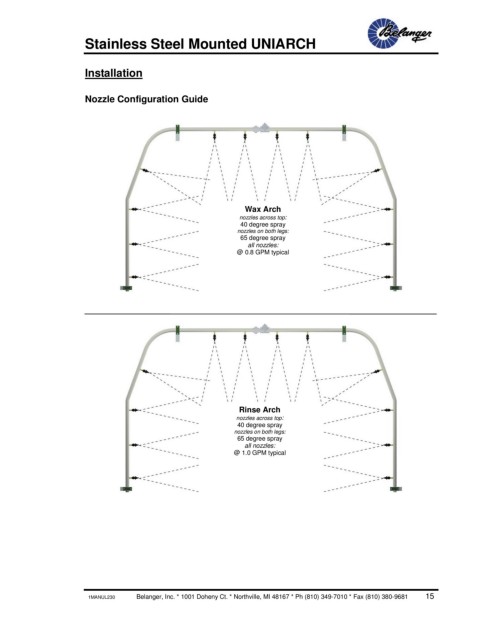

Nozzle Configuration Guide
Wax Arch
nozzles across top:
40 degree spray
nozzles on both legs:
65 degree spray
all nozzles:
@ 0.8 GPM typical
Rinse Arch
nozzles across top:
40 degree spray
nozzles on both legs:
65 degree spray
all nozzles:
@ 1.0 GPM typical
