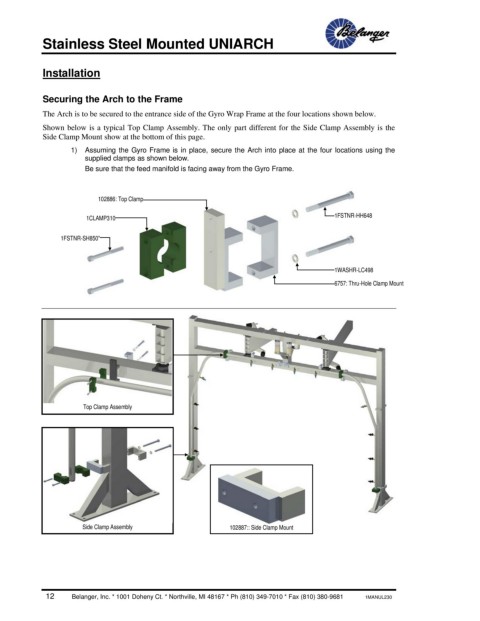

Stainless Steel Mounted UNIARCH
Installation
Securing the Arch to the Frame
The Arch is to be secured to the entrance side of the Gyro Wrap Frame at the four locations shown below.
Shown below is a typical Top Clamp Assembly. The only part different for the Side Clamp Assembly is the
Side Clamp Mount show at the bottom of this page.
1) Assuming the Gyro Frame is in place, secure the Arch into place at the four locations using the
supplied clamps as shown below.
Be sure that the feed manifold is facing away from the Gyro Frame.
102886: Top Clamp
1CLAMP310 1FSTNR-HH648
1FSTNR-SH850”
1WASHR-LC498
6757: Thru-Hole Clamp Mount
Top Clamp Assembly
Side Clamp Assembly 102887:: Side Clamp Mount
12 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (810) 349-7010 * Fax (810) 380-9681 1MANUL230
