INSTALLATION & STARTUP
Chapter 3 Getting Started
Possible Bay Length Reductions
Manifold Clearance

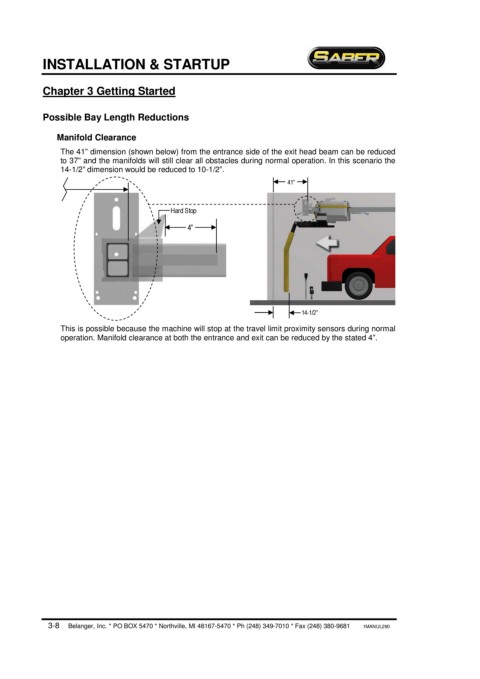

The 41” dimension (shown below) from the entrance side of the exit head beam can be reduced
to 37” and the manifolds will still clear all obstacles during normal operation. In this scenario the
14-1/2” dimension would be reduced to 10-1/2”.
41”
Hard Stop
4”
14-1/2”
This is possible because the machine will stop at the travel limit proximity sensors during normal
operation. Manifold clearance at both the entrance and exit can be reduced by the stated 4”.
