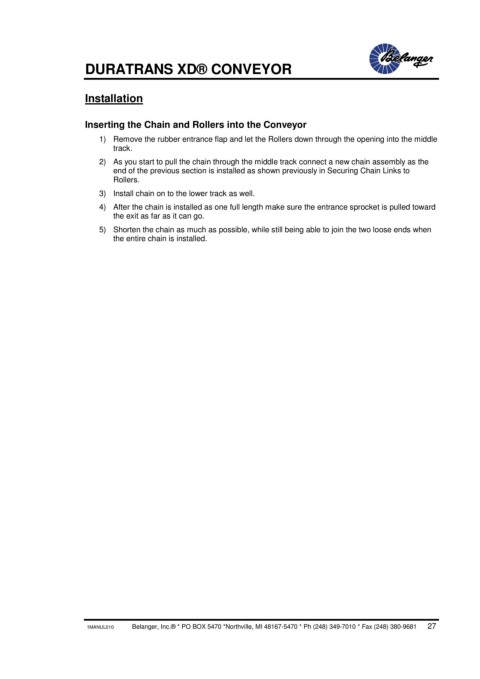

DURATRANS XD® CONVEYOR
Installation
Inserting the Chain and Rollers into the Conveyor
1) Remove the rubber entrance flap and let the Rollers down through the opening into the middle
track.
2) As you start to pull the chain through the middle track connect a new chain assembly as the
end of the previous section is installed as shown previously in Securing Chain Links to
Rollers.
3) Install chain on to the lower track as well.
4) After the chain is installed as one full length make sure the entrance sprocket is pulled toward
the exit as far as it can go.
5) Shorten the chain as much as possible, while still being able to join the two loose ends when
the entire chain is installed.
