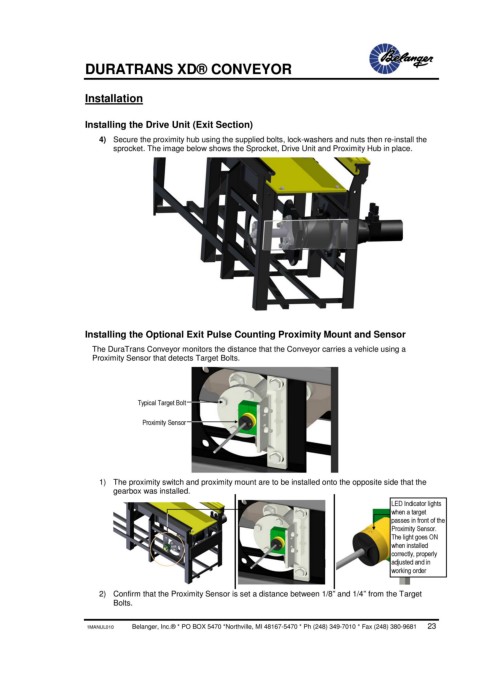

DURATRANS XD® CONVEYOR

Installation

Installing the Drive Unit (Exit Section)
4) Secure the proximity hub using the supplied bolts, lock-washers and nuts then re-install the
sprocket. The image below shows the Sprocket, Drive Unit and Proximity Hub in place.

Installing the Optional Exit Pulse Counting Proximity Mount and Sensor

The DuraTrans Conveyor monitors the distance that the Conveyor carries a vehicle using a
Proximity Sensor that detects Target Bolts.

Typical Target Bolt

Proximity Sensor

1) The proximity switch and proximity mount are to be installed onto the opposite side that the
gearbox was installed.
LED Indicator lights
when a target
passes in front of the
Proximity Sensor.
The light goes ON
when installed
correctly, properly
adjusted and in
working order

2) Confirm that the Proximity Sensor is set a distance between 1/8” and 1/4” from the Target
Bolts.
