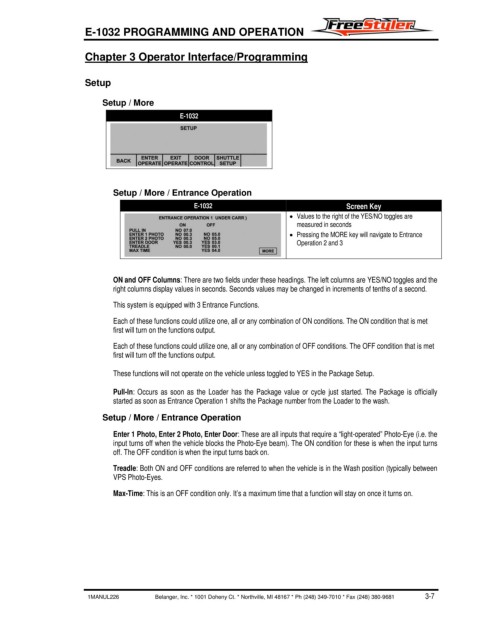

E-1032 PROGRAMMING AND OPERATION

Chapter 3 Operator Interface/Programming

Setup

Setup / More
E-1032

Setup / More / Entrance Operation
E-1032 Screen Key
• Values to the right of the YES/NO toggles are
measured in seconds
• Pressing the MORE key will navigate to Entrance
Operation 2 and 3

ON and OFF Columns: There are two fields under these headings. The left columns are YES/NO toggles and the
right columns display values in seconds. Seconds values may be changed in increments of tenths of a second.

This system is equipped with 3 Entrance Functions.
Each of these functions could utilize one, all or any combination of ON conditions. The ON condition that is met
first will turn on the functions output.
Each of these functions could utilize one, all or any combination of OFF conditions. The OFF condition that is met
first will turn off the functions output.

These functions will not operate on the vehicle unless toggled to YES in the Package Setup.

Pull-In: Occurs as soon as the Loader has the Package value or cycle just started. The Package is officially
started as soon as Entrance Operation 1 shifts the Package number from the Loader to the wash.

Setup / More / Entrance Operation
Enter 1 Photo, Enter 2 Photo, Enter Door: These are all inputs that require a “light-operated” Photo-Eye (i.e. the
input turns off when the vehicle blocks the Photo-Eye beam). The ON condition for these is when the input turns
off. The OFF condition is when the input turns back on.

Treadle: Both ON and OFF conditions are referred to when the vehicle is in the Wash position (typically between
VPS Photo-Eyes.

Max-Time: This is an OFF condition only. It’s a maximum time that a function will stay on once it turns on.

1MANUL226 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 3-7
