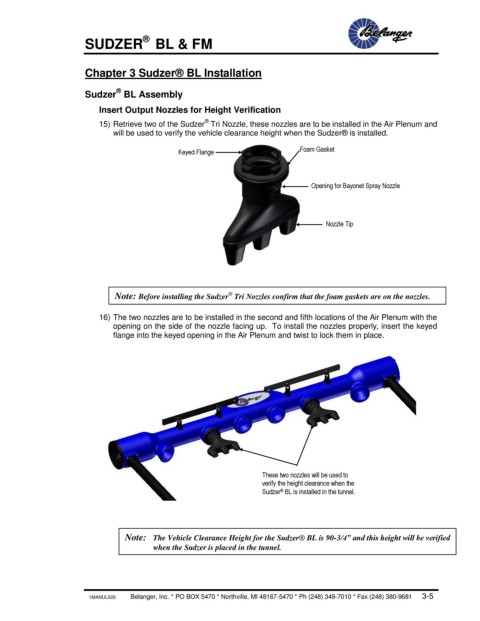

Chapter 3 Sudzer® BL Installation

®
Sudzer BL Assembly
Insert Output Nozzles for Height Verification
®
15) Retrieve two of the Sudzer Tri Nozzle, these nozzles are to be installed in the Air Plenum and
will be used to verify the vehicle clearance height when the Sudzer® is installed.

Keyed Flange Foam Gasket

Opening for Bayonet Spray Nozzle

Nozzle Tip

®
Note: Before installing the Sudzer Tri Nozzles confirm that the foam gaskets are on the nozzles.

16) The two nozzles are to be installed in the second and fifth locations of the Air Plenum with the
opening on the side of the nozzle facing up. To install the nozzles properly, insert the keyed
flange into the keyed opening in the Air Plenum and twist to lock them in place.

These two nozzles will be used to
verify the height clearance when the
®
Sudzer BL is installed in the tunnel.

Note: The Vehicle Clearance Height for the Sudzer® BL is 90-3/4” and this height will be verified
when the Sudzer is placed in the tunnel.
