Chapter 3 Sudzer® BL Installation

®
Sudzer BL Assembly
Tunnel Placement

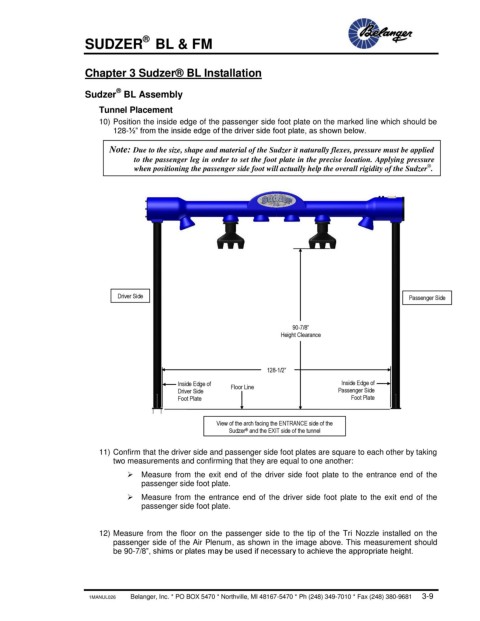

10) Position the inside edge of the passenger side foot plate on the marked line which should be
128-½” from the inside edge of the driver side foot plate, as shown below.

Note: Due to the size, shape and material of the Sudzer it naturally flexes, pressure must be applied
to the passenger leg in order to set the foot plate in the precise location. Applying pressure
®
when positioning the passenger side foot will actually help the overall rigidity of the Sudzer .

Driver Side Passenger Side

90-7/8”
Height Clearance

128-1/2”

Inside Edge of Floor Line Inside Edge of
Driver Side Passenger Side
Foot Plate Foot Plate

View of the arch facing the ENTRANCE side of the

®
Sudzer and the EXIT side of the tunnel

11) Confirm that the driver side and passenger side foot plates are square to each other by taking
two measurements and confirming that they are equal to one another:
 Measure from the exit end of the driver side foot plate to the entrance end of the
passenger side foot plate.

 Measure from the entrance end of the driver side foot plate to the exit end of the
passenger side foot plate.

12) Measure from the floor on the passenger side to the tip of the Tri Nozzle installed on the
passenger side of the Air Plenum, as shown in the image above. This measurement should
be 90-7/8”, shims or plates may be used if necessary to achieve the appropriate height.
