SUDZER BL & FM

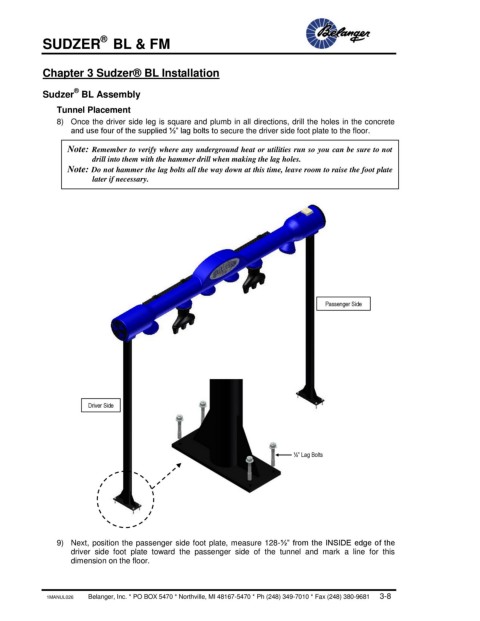

Chapter 3 Sudzer® BL Installation

®
Sudzer BL Assembly
Tunnel Placement
8) Once the driver side leg is square and plumb in all directions, drill the holes in the concrete
and use four of the supplied ½” lag bolts to secure the driver side foot plate to the floor.

Note: Remember to verify where any underground heat or utilities run so you can be sure to not
drill into them with the hammer drill when making the lag holes.
Note: Do not hammer the lag bolts all the way down at this time, leave room to raise the foot plate
later if necessary.

Passenger Side

Driver Side

½” Lag Bolts

9) Next, position the passenger side foot plate, measure 128-½” from the INSIDE edge of the
driver side foot plate toward the passenger side of the tunnel and mark a line for this
dimension on the floor.
