            SUDZER  BL & FM

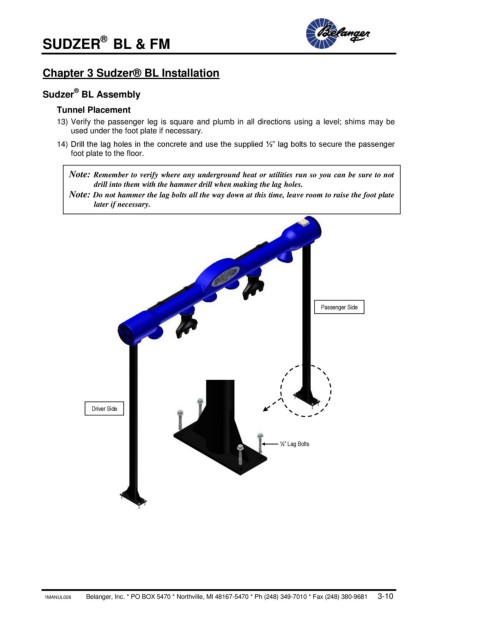

            Chapter 3 Sudzer® BL Installation

                    ®
            Sudzer  BL Assembly
               Tunnel Placement
               13) Verify the passenger leg is square and plumb in all directions using a level; shims may be
                   used under the foot plate if necessary.
               14) Drill the lag holes in the concrete and use the supplied ½” lag bolts to secure the passenger
                   foot plate to the floor.

                   Note: Remember to verify where any underground heat or utilities run so you can be sure to not
                         drill into them with the hammer drill when making the lag holes.
                   Note: Do not hammer the lag bolts all the way down at this time, leave room to raise the foot plate
                         later if necessary.














                                                                                   Passenger Side















                        Driver Side



                                                                        ½” Lag Bolts
















            1MANUL026         Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681     3-10
