SUDZER BL & FM

Chapter 3 Sudzer® BL Installation

®
Sudzer BL Assembly
Tunnel Placement
5) Before lagging the driver side leg in place verify the leg is plumb in all directions using a level.

6) Shims may be used under the foot plate if necessary to make the driver side leg level.

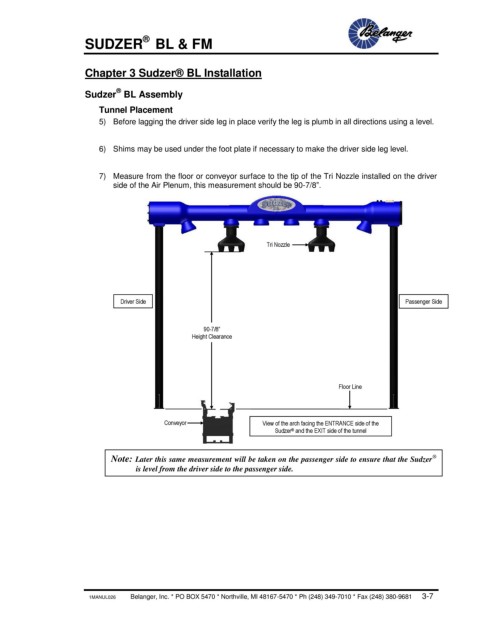

7) Measure from the floor or conveyor surface to the tip of the Tri Nozzle installed on the driver
side of the Air Plenum, this measurement should be 90-7/8”.

Tri Nozzle

Driver Side Passenger Side

90-7/8”
Height Clearance

Floor Line

Conveyor View of the arch facing the ENTRANCE side of the
Sudzer and the EXIT side of the tunnel
®

®
Note: Later this same measurement will be taken on the passenger side to ensure that the Sudzer
is level from the driver side to the passenger side.

1MANUL026 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 3-7
