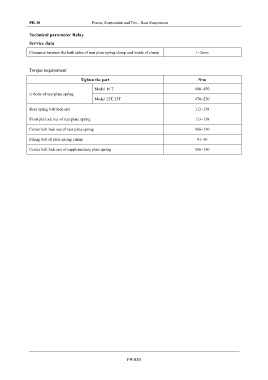

FR-30 Frame, Suspension and Tire - Rear Suspension

Technical parameter Relay
Service data

Clearance between the both sides of rear plate spring clamp and inside of clamp 1~2mm

Torque requirement
Tighten the part N•m

Model 16 T 400~450
U-bolts of rear plate spring
Model 22T, 25T 470~520

Rear spring bolt lock nut 113~138

Front pin lock nut of rear plate spring 113~138
Center bolt lock nut of rear plate spring 106~130

Fixing bolt of plate spring clamp 41~56

Center bolt lock nut of supplementary plate spring 106~130

FR-030
