Frame, Suspension and Tire - Rear Suspension FR-31

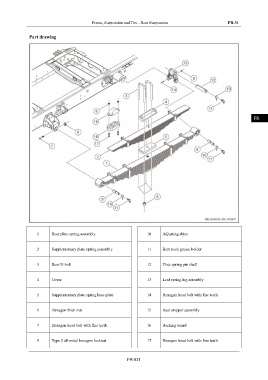

Part drawing IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Rear plate spring assembly 10 Adjusting shim
2 Supplementary plate spring assembly 11 Bent neck grease holder
3 Rear U-bolt 12 Plate spring pin shaft
4 Cover 13 Leaf spring lug assembly
5 Supplementary plate spring base plate 14 Hexagon head bolt with fine teeth
6 Hexagon thick nut 15 Rear stopper assembly
7 Hexagon head bolt with fine teeth 16 Backing board
8 Type 2 all-metal hexagon locknut 17 Hexagon head bolt with fine teeth
