Frame, Suspension and Tire - Rear Suspension FR-33

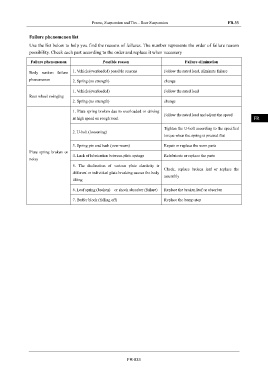

Failure phenomenon list IN

Use the list below to help you find the reasons of failures. The number represents the order of failure reason
possibility. Check each part according to the order and replace it when necessary DI
Failure phenomenon Possible reason Failure elimination
EG
Body sunken failure 1. Vehicle(overloaded) possible reasons Follow the rated load, eliminate failure

phenomenon 2. Spring (no strength) change
TR
1. Vehicle(overloaded) Follow the rated load

Rear wheel swinging
2. Spring (no strength) change AX
1. Plate spring broken due to overloaded or driving
Follow the rated load and adjust the speed
at high speed on rough road. FR

Tighten the U-bolt according to the specified
2. U-bolt (loosening)
torque when the spring is pressed flat ST

3. Spring pin and bush (over-worn) Repair or replace the worn parts
Plate spring broken or BR
4. Lack of lubrication between plate springs Relubricate or replace the parts
noisy
5. The declination of various plate elasticity is BW
Check, replace broken leaf or replace the
different or individual plate breaking causes the body
assembly
tilting
EL
6. Leaf spring (broken) or shock absorber (failure) Replace the broken leaf or absorber

7. Buffer block (falling off) Replace the bump stop

FR-033
