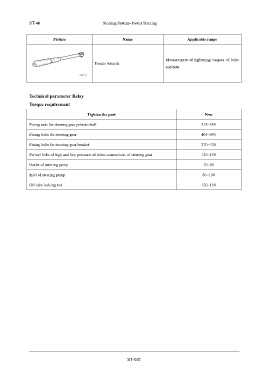

ST-40 Steering System- Power Steering

Picture Name Applicable range

Measurement of tightening torques of bolts
Torque wrench
and nuts

Technical parameter Relay
Torque requirement

Tighten the part N•m

Fixing nuts for steering gear pitman shaft 315~385

Fixing bolts for steering gear 405~495

Fixing bolts for steering gear bracket 270~330
Swivel bolts of high and low pressure oil tubes connections of steering gear 120~150

Outlet of steering pump 70~90

Inlet of steering pump 80~100

Oil tube locking nut 120~150

ST-040
