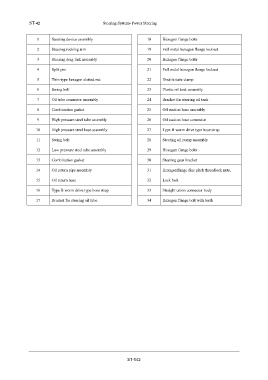

ST-42 Steering System- Power Steering

1 Steering device assembly 18 Hexagon flange bolts

2 Steering rocking arm 19 Full metal hexagon flange locknut

3 Steering drag link assembly 20 Hexagon flange bolts

4 Split pin 21 Full metal hexagon flange locknut

5 Thin-type hexagon slotted nut 22 Double tube clamp
6 Swing bolt 23 Plastic oil tank assembly

7 Oil tube connector assembly 24 Bracket for steering oil tank

8 Combination gasket 25 Oil suction hose assembly

9 High pressure steel tube assembly 26 Oil suction hose connector

10 High pressure steel hose assembly 27 Type B worm drive type hose strap
11 Swing bolt 28 Steering oil pump assembly

12 Low pressure steel tube assembly 29 Hexagon flange bolts

13 Combination gasket 30 Steering gear bracket

14 Oil return pipe assembly 31 Hexagonflange fine pitch threadlock nuts,

15 Oil return hose 32 Lock bolt
16 Type B worm drive type hose strap 33 Straight union connector body

17 Bracket for steering oil tube 34 Hexagon flange bolt with teeth

ST-042
