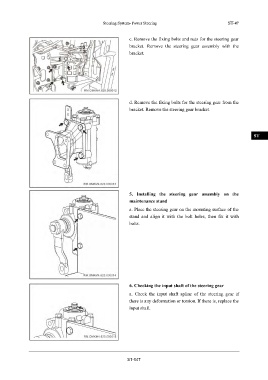

Steering System- Power Steering ST-47

IN
c. Remove the fixing bolts and nuts for the steering gear
bracket. Remove the steering gear assembly with the
bracket. DI

EG

TR

d. Remove the fixing bolts for the steering gear from the AX
bracket. Remove the steering gear bracket.
FR

ST

BR

BW

EL
5. Installing the steering gear assembly on the
maintenance stand

a. Place the steering gear on the mounting surface of the
stand and align it with the bolt holes, then fix it with
bolts.

6. Checking the input shaft of the steering gear

a. Check the input shaft spline of the steering gear if
there is any deformation or torsion. If there is, replace the
input shaft.

ST-047
