Steering System- Power Steering ST-51
IN

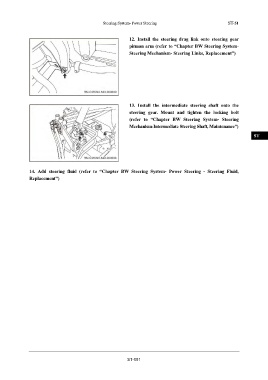

12. Install the steering drag link onto steering gear
pitman arm (refer to “Chapter BW Steering System-
Steering Mechanism- Steering Links, Replacement”) DI
EG
TR
13. Install the intermediate steering shaft onto the AX
steering gear. Mount and tighten the locking bolt
(refer to “Chapter BW Steering System- Steering FR
Mechanism-Intermediate Steering Shaft, Maintenance”)
ST
BR
14. Add steering fluid (refer to “Chapter BW Steering System- Power Steering - Steering Fluid, BW
Replacement”)
EL
ST-051
