ST-50 Steering System- Power Steering

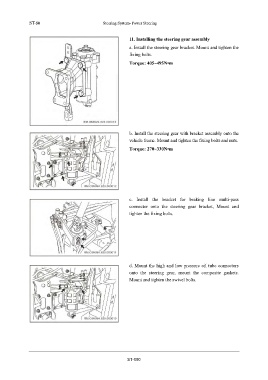

11. Installing the steering gear assembly

a. Install the steering gear bracket. Mount and tighten the
fixing bolts.
Torque: 405~495N•m

b. Install the steering gear with bracket assembly onto the
vehicle frame. Mount and tighten the fixing bolts and nuts.
Torque: 270~330N•m

c. Install the bracket for braking line multi-pass
connector onto the steering gear bracket, Mount and
tighten the fixing bolts.

d. Mount the high and low pressure oil tube connectors
onto the steering gear, mount the composite gaskets.
Mount and tighten the swivel bolts.

ST-050
