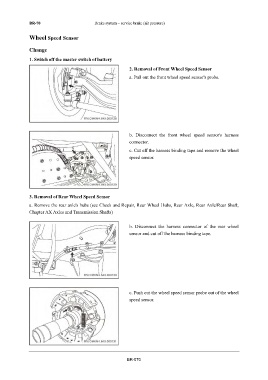

BR-70 Brake system – service brake (air pressure)

Wheel Speed Sensor

Change

1. Switch off the master switch of battery
2. Removal of Front Wheel Speed Sensor

a. Pull out the front wheel speed sensor's probe.

b. Disconnect the front wheel speed sensor's harness
connector.
c. Cut off the harness binding tape and remove the wheel
speed sensor.

3. Removal of Rear Wheel Speed Sensor
a. Remove the rear axle's hubs (see Check and Repair, Rear Wheel Hubs, Rear Axle, Rear Axle/Rear Shaft,
Chapter AX Axles and Transmission Shafts)

b. Disconnect the harness connector of the rear wheel
sensor and cut off the harness binding tape.

c. Push out the wheel speed sensor probe out of the wheel
speed sensor.

BR-070
