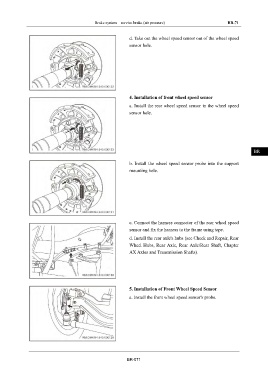

Brake system – service brake (air pressure) BR-71

IN
d. Take out the wheel speed sensor out of the wheel speed
sensor hole.
DI

EG

TR

4. Installation of front wheel speed sensor
AX
a. Install the rear wheel speed sensor in the wheel speed
sensor hole.
FR

ST

BR

b. Install the wheel speed sensor probe into the support
BW
mounting hole.

EL

c. Connect the harness connector of the rear wheel speed
sensor and fix the harness to the frame using tape.

d. Install the rear axle's hubs (see Check and Repair, Rear
Wheel Hubs, Rear Axle, Rear Axle/Rear Shaft, Chapter
AX Axles and Transmission Shafts).

5. Installation of Front Wheel Speed Sensor

a. Install the front wheel speed sensor's probe.

BR-071
