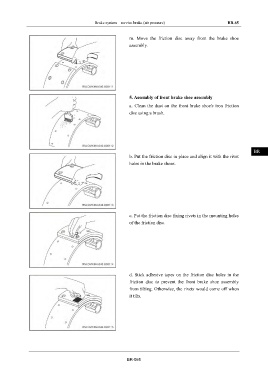

Brake system – service brake (air pressure) BR-65

IN
m. Move the friction disc away from the brake shoe

assembly.
DI

EG

TR

5. Assembly of front brake shoe assembly
AX
a. Clean the dust on the front brake shoe's iron friction

disc using a brush.
FR

ST

BR
b. Put the friction disc in place and align it with the rivet

holes in the brake shoes.
BW

EL

c. Put the friction disc fixing rivets in the mounting holes

of the friction disc.

d. Stick adhesive tapes on the friction disc holes in the
friction disc to prevent the front brake shoe assembly

from tilting. Otherwise, the rivets would come off when

it tilts.
