Brake system – service brake (air pressure) BR-77

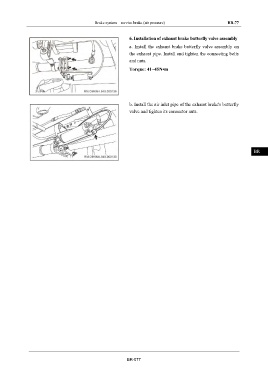

6. Installation of exhaust brake butterfly valve assembly IN
a. Install the exhaust brake butterfly valve assembly on
DI
the exhaust pipe. Install and tighten the connecting bolts
and nuts.
Torque: 41~45N•m EG
TR
AX
b. Install the air inlet pipe of the exhaust brake's butterfly
valve and tighten its connector nuts.
FR
ST
BR
BW
EL
BR-077
