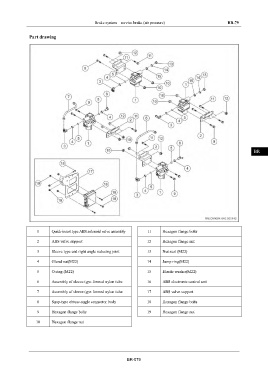

Brake system – service brake (air pressure) BR-79
Part drawing IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Quick-insert type ABS solenoid valve assembly 11 Hexagon flange bolts
2 ABS valve support 12 Hexagon flange nut
3 Sleeve type end right angle reducing joint 13 Nut seat (M22)
4 Gland nut(M22) 14 Jump ring(M22)
5 O-ring (M22) 15 Elastic washer(M22)
6 Assembly of sleeve type formed nylon tube 16 ABS electronic control unit
7 Assembly of sleeve type formed nylon tube 17 ABS valve support
8 Snap-type obtuse-angle connector body 18 Hexagon flange bolts
9 Hexagon flange bolts 19 Hexagon flange nut
10 Hexagon flange nut
BR-079
