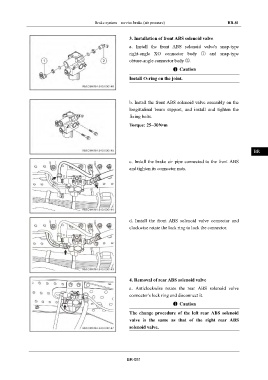

Brake system – service brake (air pressure) BR-81

3. Installation of front ABS solenoid valve IN

a. Install the front ABS solenoid valve's snap-type
DI
right-angle XO connector body ① and snap-type
obtuse-angle connector body ②.
Caution EG

Install O-ring on the joint.
TR

b. Install the front ABS solenoid valve assembly on the AX
longitudinal beam support, and install and tighten the
fixing bolts.
FR
Torque: 25~30N•m

ST

BR

c. Install the brake air pipe connected to the front ABS
and tighten its connector nuts. BW

EL

d. Install the front ABS solenoid valve connector and
clockwise rotate the lock ring to lock the connector.

4. Removal of rear ABS solenoid valve

a. Anticlockwise rotate the rear ABS solenoid valve

connector's lock ring and disconnect it.
Caution

The change procedure of the left rear ABS solenoid
valve is the same as that of the right rear ABS
solenoid valve.

BR-081
