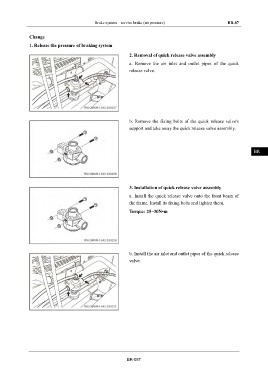

Brake system – service brake (air pressure) BR-87

Change IN

1. Release the pressure of braking system
2. Removal of quick release valve assembly DI

a. Remove the air inlet and outlet pipes of the quick
EG
release valve.

TR

AX

FR
b. Remove the fixing bolts of the quick release valve's
support and take away the quick release valve assembly.
ST

BR

BW

3. Installation of quick release valve assembly EL

a. Install the quick release valve onto the front beam of
the frame. Install its fixing bolts and tighten them.
Torque: 25~30N•m

b. Install the air inlet and outlet pipes of the quick release
valve.

BR-087
