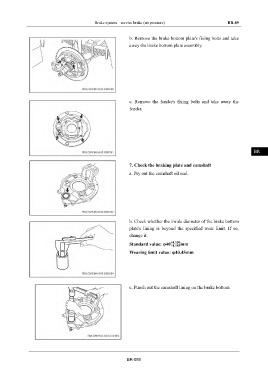

Brake system – service brake (air pressure) BR-89

IN
b. Remove the brake bottom plate's fixing bolts and take
away the brake bottom plate assembly.
DI

EG

TR

c. Remove the fender's fixing bolts and take away the AX
fender.
FR

ST

BR

7. Check the braking plate and camshaft
BW
a. Pry out the camshaft oil seal.

EL

b. Check whether the inside diameter of the brake bottom
plate's lining is beyond the specified wear limit. If so,
change it.
Standard value: φ40 +0.150 mm
+0.185
Wearing limit value: φ40.45mm

c. Punch out the camshaft lining on the brake bottom

BR-089
