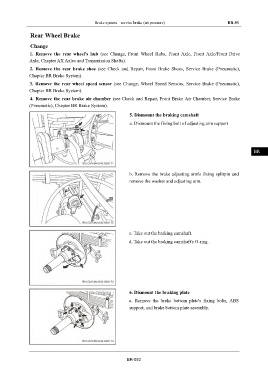

Brake system – service brake (air pressure) BR-93
Rear Wheel Brake IN

Change

1. Remove the rear wheel's hub (see Change, Front Wheel Hubs, Front Axle, Front Axle/Front Drive DI
Axle, Chapter AX Axles and Transmission Shafts).
2. Remove the rear brake shoe (see Check and Repair, Front Brake Shoes, Service Brake (Pneumatic), EG
Chapter BR Brake System).
3. Remove the rear wheel speed sensor (see Change, Wheel Speed Sensors, Service Brake (Pneumatic), TR
Chapter BR Brake System).
4. Remove the rear brake air chamber (see Check and Repair, Front Brake Air Chamber, Service Brake
(Pneumatic), Chapter BR Brake System). AX

5. Dismount the braking camshaft
FR
a. Dismount the fixing bolt of adjusting arm support

ST

BR

BW
b. Remove the brake adjusting arm's fixing splitpin and
remove the washer and adjusting arm.
EL

c. Take out the braking camshaft.
d. Take out the braking camshaft's O-ring.

6. Dismount the braking plate

a. Remove the brake bottom plate's fixing bolts, ABS
support, and brake bottom plate assembly.

BR-093
