Brake system – parking brake BR-97

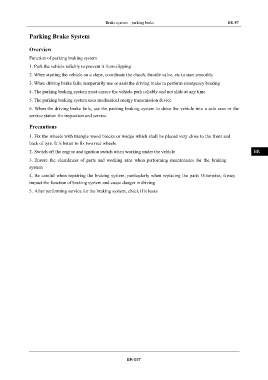

Parking Brake System IN

Overview
DI
Function of parking braking system
1. Park the vehicle reliably to prevent it from slipping
EG
2. When starting the vehicle on a slope, coordinate the clutch, throttle valve, etc to start smoothly
3. When driving brake fails, temporarily use or assit the driving brake to perform emergency braking TR

4. The parking braking system must ensure the vehicle park reliably and not slide at any time
5. The parking braking system uses mechanical energy transmission device AX

6. When the driving brake fails, use the parking braking system to drive the vehicle into a safe area or the
service station for inspection and service
FR
Precautions

1. Fix the wheels with triangle wood blocks or wedge which shall be placed very close to the front and ST
back of tyre. It is better to fix two rear wheels.
2. Switch off the engine and ignition switch when working under the vehicle BR
3. Ensure the cleanliness of parts and working area when performing maintenance for the braking
system BW

4. Be careful when repairing the braking system, particularly when replacing the parts Otherwise, it may
impact the function of braking system and cause danger in driving
EL
5. After performing service for the braking system, check if it leaks

BR-097
