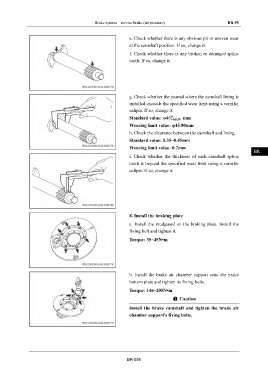

Page 1227 - Foton Workshop Manual - Auman EST-M

Brake system – service brake (air pressure) BR-95

IN
e. Check whether there is any obvious pit or uneven wear

at the camshaft position. If so, change it.
DI
f. Check whether there is any broken or damaged spline
tooth. If so, change it.

EG

TR

g. Check whether the journal where the camshaft lining is
AX
installed exceeds the specified wear limit using a vernifer
caliper. If so, change it.
Standard value: φ46 0 +0.039 mm FR
Wearing limit value: φ45.80mm
h. Check the clearance between the camshaft and lining.
ST
Standard value: 0.35~0.45mm

Wearing limit value: 0.7mm
BR
i. Check whether the thickness of each camshaft spline

tooth is beyond the specified wear limit using a vernifer
BW
caliper. If so, change it.

EL

8. Install the braking plate

a. Install the mudguard on the braking plate. Install the

fixing bolt and tighten it.

Torque: 35~45N•m

b. Install the brake air chamber support onto the brake
bottom plate and tighten its fixing bolts.

Torque: 146~205N•m

Caution

Install the brake camshaft and tighten the brake air
chamber support's fixing bolts.

BR-095
