Brake system – parking brake BR-99

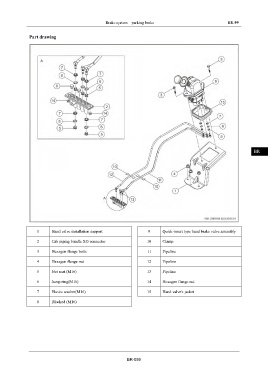

Part drawing IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Hand valve installation support 9 Quick-insert type hand brake valve assembly
2 Cab piping bundle XO connector 10 Clamp
3 Hexagon flange bolts 11 Pipeline
4 Hexagon flange nut 12 Pipeline
5 Nut seat (M16) 13 Pipeline
6 Jump ring(M16) 14 Hexagon flange nut
7 Elastic washer(M16) 15 Hand valve's jacket
8 Blocked (M16)
