Brake system – parking brake BR-101
Hand-Controlled Valve IN
Working Principle DI
Automatic return zone EG
Emergency stop thrust position
TR
Service position Parking brake lock position
AX
FR
ST
BR
BW
EL
Output pressure
Emergency braking position
Parking position
Handle rotation angle

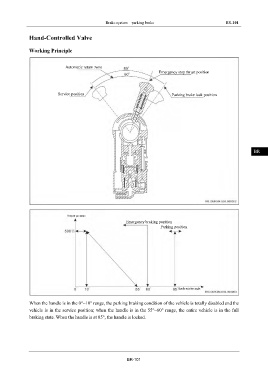

When the handle is in the 0°~10° range, the parking braking condition of the vehicle is totally disabled and the
vehicle is in the service position; when the handle is in the 55°~60° range, the entire vehicle is in the full
braking state. When the handle is at 85°, the handle is locked.
