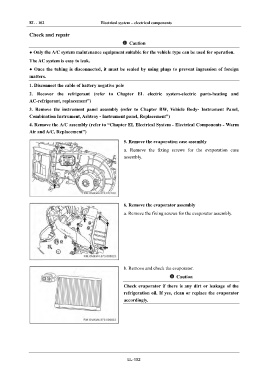

EL - 102 Electrical system – electrical components

IN Check and repair

Caution
DI ● Only the A/C system maintenance equipment suitable for the vehicle type can be used for operation.
The AC system is easy to leak.
EG ● Once the tubing is disconnected, it must be sealed by using plugs to prevent ingression of foreign

matters.
TR 1. Disconnect the cable of battery negative pole
2. Recover the refrigerant (refer to Chapter EL electric system-electric parts-heating and

AX AC-refrigerant, replacement”)
3. Remove the instrument panel assembly (refer to Chapter BW, Vehicle Body- Instrument Panel,
Combination Instrument, Ashtray - Instrument panel, Replacement”)
FR
4. Remove the A/C assembly (refer to “Chapter EL Electrical System - Electrical Components - Warm

Air and A/C, Replacement”)
ST
5. Remove the evaporation case assembly

a. Remove the fixing screws for the evaporation case
BR
assembly.

BW

EL

6. Remove the evaporator assembly

a. Remove the fixing screws for the evaporator assembly.

b. Remove and check the evaporator.
Caution
Check evaporator if there is any dirt or leakage of the

refrigeration oil. If yes, clean or replace the evaporator
accordingly.

EL-102
