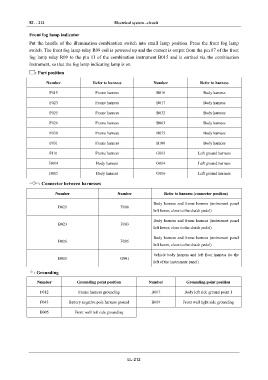

EL - 212 Electrical system –circuit

IN Front fog lamp indicator

Put the handle of the illumination combination switch into small lamp position. Press the front fog lamp
DI switch. The front fog lamp relay R09 coil is powered up and the current is output from the pin 87 of the front
fog lamp relay R09 to the pin 11 of the combination instrument B015 and is earthed via the combination

instrument, so that the fog lamp indicating lamp is on.
EG
: Part position

Number Refer to harness Number Refer to harness
TR
F015 Frame harness B016 Body harness

AX F023 Frame harness B017 Body harness

F025 Frame harness B032 Body harness
FR
F026 Frame harness B063 Body harness

F030 Frame harness B075 Body harness
ST
F031 Frame harness B100 Body harness

BR F101 Frame harness G003 Left ground harness

B014 Body harness G004 Left ground harness
BW
B015 Body harness G006 Left ground harness

EL : Connector between harnesses
Number Number Refer to harness (connector position)
Body harness and frame harness (instrument panel
B021 F008
left lower, close to the clutch pedal)

Body harness and frame harness (instrument panel
B023 F003
left lower, close to the clutch pedal)

Body harness and frame harness (instrument panel
B026 F005
left lower, close to the clutch pedal)

Vehicle body harness and left floor harness (to the
B010 G001 left of the instrument panel)

: Grounding

Number Grounding point position Number Grounding point position

F012 Frame harness grounding B007 Body left side ground point 1
F043 Battery negative pole harness ground B069 Front wall right side grounding

B005 Front wall left side grounding

EL-212
