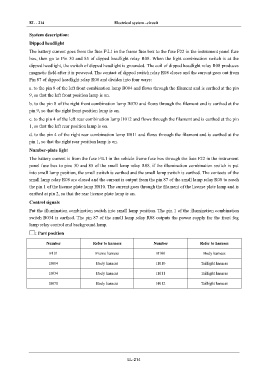

EL - 214 Electrical system –circuit

IN System description:

Dipped headlight
DI The battery current goes from the fuse F\L1 in the frame fuse box to the fuse F22 in the instrument panel fuse
box, then go to Pin 30 and 85 of dipped headlight relay R08. When the light combination switch is at the

dipped headlight, the switch of dipped headlight is grounded. The coil of dipped headlight relay R08 produces
EG
magnetic field after it is powered. The contact of dipped switch relay R08 closes and the current goes out from

Pin 87 of dipped headlight relay R08 and divides into four ways:
TR
a. to the pin 8 of the left front combination lamp B004 and flows through the filament and is earthed at the pin
9, so that the left front position lamp is on.

AX
b. to the pin 8 of the right front combination lamp B070 and flows through the filament and is earthed at the
pin 9, so that the right front position lamp is on.
FR c. to the pin 4 of the left rear combination lamp H012 and flows through the filament and is earthed at the pin

1, so that the left rear position lamp is on.
ST d. to the pin 4 of the right rear combination lamp H011 and flows through the filament and is earthed at the
pin 1, so that the right rear position lamp is on.

Number-plate light
BR
The battery current is from the fuse F\L1 in the vehicle frame fuse box through the fuse F22 in the instrument
panel fuse box to pins 30 and 85 of the small lamp relay R08. if the illumination combination switch is put
BW
into small lamp position, the small switch is earthed and the small lamp switch is earthed. The contacts of the

small lamp relay R08 are closed and the current is output from the pin 87 of the small lamp relay R08 to reach
EL the pin 1 of the license plate lamp H010. The current goes through the filament of the license plate lamp and is
earthed at pin 2, so that the rear license plate lamp is on.
Control signals

Put the illumination combination switch into small lamp position. The pin 1 of the illumination combination
switch B034 is earthed. The pin 87 of the small lamp relay R08 outputs the power supply for the front fog
lamp relay control and background lamp.

: Part position

Number Refer to harness Number Refer to harness
F101 Frame harness B100 Body harness

B004 Body harness H010 Taillight harness

B034 Body harness H011 Taillight harness

B070 Body harness H012 Taillight harness

EL-214
