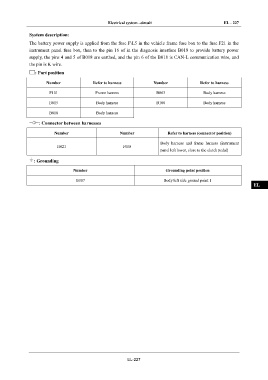

Electrical system –circuit EL - 227
System description: IN
The battery power supply is applied from the fuse F\L5 in the vehicle frame fuse box to the fuse F21 in the
instrument panel fuse box, then to the pin 16 of in the diagnosis interface B018 to provide battery power DI
supply, the pins 4 and 5 of B018 are earthed, and the pin 6 of the B018 is CAN-L communication wire, and
the pin is K wire.
EG
: Part position
Number Refer to harness Number Refer to harness
TR
F101 Frame harness B063 Body harness
B015 Body harness B100 Body harness AX
B018 Body harness
FR
: Connector between harnesses
Number Number Refer to harness (connector position)
ST
Body harness and frame harness (instrument
B021 F008
panel left lower, close to the clutch pedal) BR
: Grounding
BW
Number Grounding point position
B007 Body left side ground point 1
EL
EL-227
