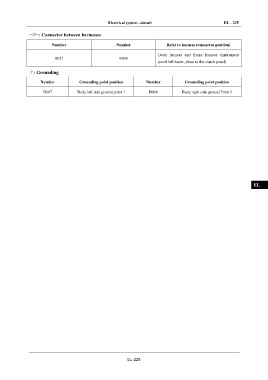

Electrical system –circuit EL - 225
: Connector between harnesses IN
Number Number Refer to harness (connector position)
DI
Body harness and frame harness (instrument
B021 F008
panel left lower, close to the clutch pedal)
EG
: Grounding
Number Grounding point position Number Grounding point position
TR
B007 Body left side ground point 1 B068 Body right side ground Point 1
AX
FR
ST
BR
BW
EL
EL-225
