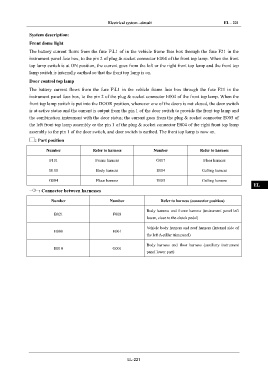

Electrical system –circuit EL - 221

System description: IN

Front dome light
The battery current flows from the fuse F\L1 of in the vehicle frame fuse box through the fuse F21 in the DI
instrument panel fuse box, to the pin 2 of plug & socket connector E004 of the front top lamp. When the front
top lamp switch is at ON position, the current goes from the left or the right front top lamp and the front top
EG
lamp switch is internally earthed so that the front top lamp is on.

Door control top lamp
TR
The battery current flows from the fuse F\L1 in the vehicle frame fuse box through the fuse F21 in the

instrument panel fuse box, to the pin 2 of the plug & socket connector E004 of the front top lamp. When the
AX
front top lamp switch is put into the DOOR position, whenever one of the doors is not closed, the door switch
is at active status and the current is output from the pin 1 of the door switch to provide the front top lamp and
the combination instrument with the door status; the current goes from the plug & socket connector E005 of FR
the left front top lamp assembly or the pin 1 of the plug & socket connector E004 of the right front top lamp
assembly to the pin 1 of the door switch, and door switch is earthed. The front top lamp is now on.
ST
: Part position

Number Refer to harness Number Refer to harness BR

F101 Frame harness G007 Floor harness
BW
B100 Body harness E004 Ceiling harness

G004 Floor harness E005 Ceiling harness
EL
: Connector between harnesses

Number Number Refer to harness (connector position)

Body harness and frame harness (instrument panel left
B021 F008
lower, close to the clutch pedal)

Vehicle body harness and roof harness (internal side of
B008 E001
the left A-pillar trim panel)

Body harness and floor harness (auxiliary instrument
B010 G001
panel lower part)

EL-221
