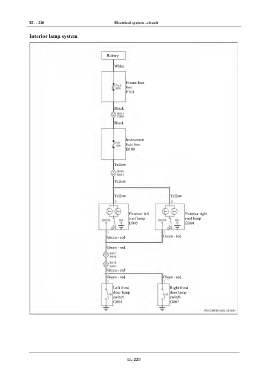

EL - 220 Electrical system –circuit
IN Interior lamp system
DI
Battery
White
EG
Frame fuse
TR box
F101
AX
Black
FR
Black
ST
Instrument
fuse box
B100
BR
Yellow
BW
Yellow
EL
Yellow Yellow
Exterior left Exterior right
roof lamp roof lamp
E005 E004
Green - red
Green - red
Green - red
Green - red
Green - red Green - red
Left front Right front
door lamp door lamp
switch switch
G004 G007
