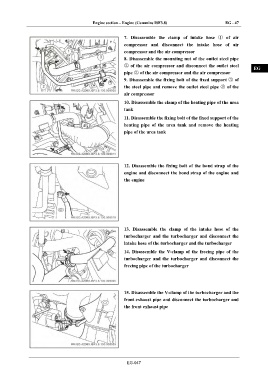

Engine section – Engine (Cummins ISF3.8) EG - 47

IN
7. Disassemble the clamp of intake hose ① of air
compressor and disconnect the intake hose of air
compressor and the air compressor DI
8. Disassemble the mounting nut of the outlet steel pipe
② of the air compressor and disconnect the outlet steel EG
pipe ② of the air compressor and the air compressor
9. Disassemble the fixing bolt of the fixed support ③ of
the steel pipe and remove the outlet steel pipe ③ of the TR
air compressor
10. Disassemble the clamp of the heating pipe of the urea AX
tank

11. Disassemble the fixing bolt of the fixed support of the FR
heating pipe of the urea tank and remove the heating
pipe of the urea tank
ST

BR

12. Disassemble the fixing bolt of the bond strap of the BW
engine and disconnect the bond strap of the engine and
the engine
EL

13. Disassemble the clamp of the intake hose of the
turbocharger and the turbocharger and disconnect the
intake hose of the turbocharger and the turbocharger

14. Disassemble the V-clamp of the freeing pipe of the
turbocharger and the turbocharger and disconnect the
freeing pipe of the turbocharger

15. Disassemble the V-clamp of the turbocharger and the
front exhaust pipe and disconnect the turbocharger and
the front exhaust pipe

EG-047
