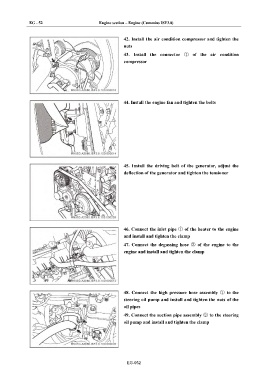

EG - 52 Engine section – Engine (Cummins ISF3.8)

42. Install the air condition compressor and tighten the
nuts
43. Install the connector ① of the air condition
compressor

44. Install the engine fan and tighten the bolts

45. Install the driving belt of the generator, adjust the
deflection of the generator and tighten the tensioner

46. Connect the inlet pipe ① of the heater to the engine
and install and tighten the clamp

47. Connect the degassing hose ② of the engine to the
engine and install and tighten the clamp

48. Connect the high pressure hose assembly ① to the
steering oil pump and install and tighten the nuts of the
oil pipes
49. Connect the suction pipe assembly ② to the steering
oil pump and install and tighten the clamp

EG-052
