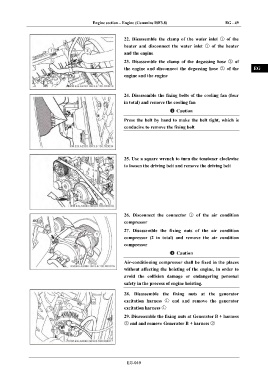

Engine section – Engine (Cummins ISF3.8) EG - 49

IN
22. Disassemble the clamp of the water inlet ① of the
heater and disconnect the water inlet ① of the heater
and the engine DI
23. Disassemble the clamp of the degassing hose ② of
the engine and disconnect the degassing hose ② of the EG
engine and the engine
TR

24. Disassemble the fixing bolts of the cooling fan (four
in total) and remove the cooling fan AX

Caution
Press the belt by hand to make the belt tight, which is FR
conducive to remove the fixing bolt

ST

BR
25. Use a square wrench to turn the tensioner clockwise
to loosen the driving belt and remove the driving belt BW

EL

26. Disconnect the connector ① of the air condition
compressor

27. Disassemble the fixing nuts of the air condition
compressor (2 in total) and remove the air condition
compressor
Caution

Air-conditioning compressor shall be fixed in the places
without affecting the hoisting of the engine, in order to
avoid the collision damage or endangering personal
safety in the process of engine hoisting.
28. Disassemble the fixing nuts at the generator
excitation harness ① end and remove the generator
excitation harness ①

29. Disassemble the fixing nuts at Generator B + harness

② end and remove Generator B + harness ②
