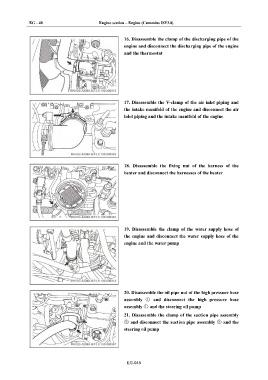

EG - 48 Engine section – Engine (Cummins ISF3.8)

16. Disassemble the clamp of the discharging pipe of the
engine and disconnect the discharging pipe of the engine
and the thermostat

17. Disassemble the V-clamp of the air inlet piping and
the intake manifold of the engine and disconnect the air
inlet piping and the intake manifold of the engine

18. Disassemble the fixing nut of the harness of the
heater and disconnect the harnesses of the heater

19. Disassemble the clamp of the water supply hose of
the engine and disconnect the water supply hose of the
engine and the water pump

20. Disassemble the oil pipe nut of the high pressure hose
assembly ① and disconnect the high pressure hose
assembly ① and the steering oil pump
21. Disassemble the clamp of the suction pipe assembly
② and disconnect the suction pipe assembly ② and the

steering oil pump

EG-048
