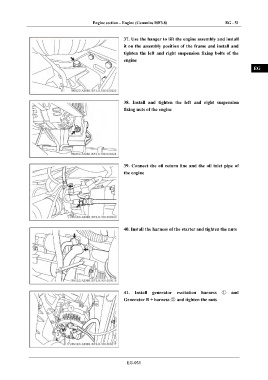

Engine section – Engine (Cummins ISF3.8) EG - 51
IN
37. Use the hanger to lift the engine assembly and install
it on the assembly position of the frame and install and
tighten the left and right suspension fixing bolts of the DI
engine
EG
TR
38. Install and tighten the left and right suspension AX
fixing nuts of the engine
FR
ST
BR
39. Connect the oil return line and the oil inlet pipe of BW
the engine
EL
40. Install the harness of the starter and tighten the nuts
41. Install generator excitation harness ① and
Generator B + harness ② and tighten the nuts
EG-051
