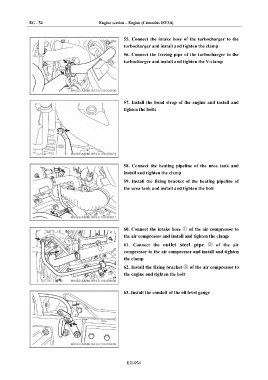

Page 570 - Foton Workshop Manual - Auman EST-M

EG - 54 Engine section – Engine (Cummins ISF3.8)

55. Connect the intake hose of the turbocharger to the
turbocharger and install and tighten the clamp
56. Connect the freeing pipe of the turbocharger to the
turbocharger and install and tighten the V-clamp

57. Install the bond strap of the engine and install and
tighten the bolts

58. Connect the heating pipeline of the urea tank and
install and tighten the clamp
59. Install the fixing bracket of the heating pipeline of
the urea tank and install and tighten the bolt

60. Connect the intake hose ① of the air compressor to
the air compressor and install and tighten the clamp

61. Connect the outlet steel pipe ② of the air
compressor to the air compressor and install and tighten
the clamp
62. Install the fixing bracket ③ of the air compressor to
the engine and tighten the bolt

63. Install the conduit of the oil level gauge

EG-054
